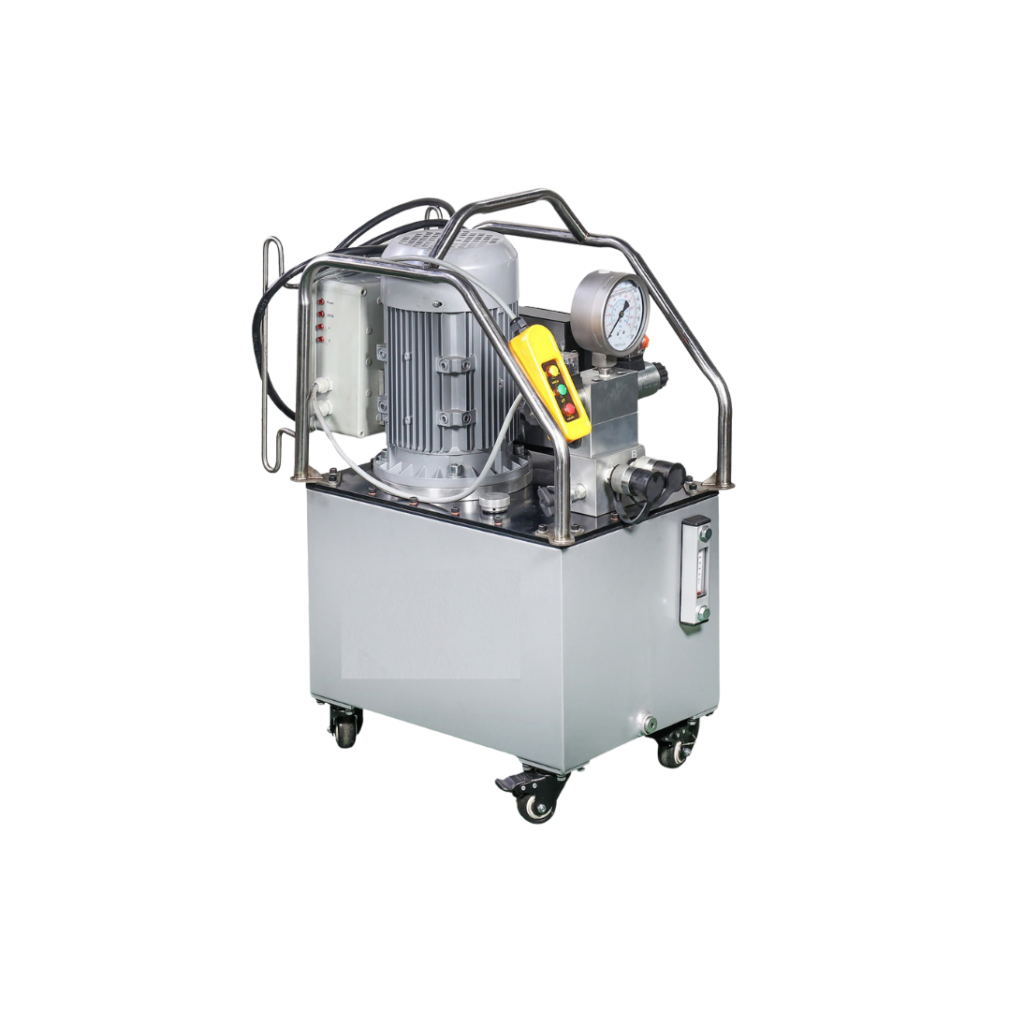

Powerpack for Cylinders | |||||||||
Model No. | Oil Flow (l/min) | Pressure (bar) | Power (kw) | Oil Capacity (L) | Input Power | Weight (kg) | Dimensions (mm) | ||
High Pressure | Low Pressure | High Pressure | Low Pressure | ||||||
EL 10 | 1 | 6.3 | 700 | 70 | 1.5 | 28 | 220V-440V 3 Ph/50 Hz | 50 | 565 x 385 x 620 |
1 | 7.5 | 700 | 70 | 1.5 | 28 | 220V-480V 3 Ph/60 Hz | 50 | 565 x 385 x 620 | |
EL 15 | 1.5 | 7 | 700 | 70 | 2.2 | 28 | 220V-440V 3 Ph/50 Hz | 55 | 565 x 385 x 620 |
1.5 | 8 | 700 | 70 | 2.2 | 28 | 220V-480V 3 Ph/60 Hz | 55 | 565 x 385 x 620 | |
EL 25 | 2.2 | 9.3 | 700 | 70 | 3 | 55 | 220V-440V 3 Ph/50 Hz | 74 | 605 x 525 x 790 |
2.2 | 8.6 | 700 | 70 | 3 | 55 | 220V-480V 3 Ph/60 Hz | 74 | 605 x 525 x 790 | |
Powerpack for Cylinders | |||||||||
Model No. | Oil Flow (l/min) | Pressure (bar) | Power (kw) | Oil Capacity (L) | Input Power | Weight (kg) | Dimensions (mm) | ||
High Pressure | Low Pressure | High Pressure | Low Pressure | ||||||
EL 10 | 1 | 6.3 | 700 | 70 | 1.5 | 28 | 220V-440V 3 Ph/50 Hz | 50 | 565 x 385 x 620 |
1 | 7.5 | 700 | 70 | 1.5 | 28 | 220V-480V 3 Ph/60 Hz | 50 | 565 x 385 x 620 | |
EL 15 | 1.5 | 7 | 700 | 70 | 2.2 | 28 | 220V-440V 3 Ph/50 Hz | 55 | 565 x 385 x 620 |
1.5 | 8 | 700 | 70 | 2.2 | 28 | 220V-480V 3 Ph/60 Hz | 55 | 565 x 385 x 620 | |
EL 25 | 2.2 | 9.3 | 700 | 70 | 3 | 55 | 220V-440V 3 Ph/50 Hz | 74 | 605 x 525 x 790 |
2.2 | 8.6 | 700 | 70 | 3 | 55 | 220V-480V 3 Ph/60 Hz | 74 | 605 x 525 x 790 | |
Electric hydraulic pumps provide consistent power, energy efficiency, and quiet operation, making them ideal for industrial applications. They offer precise pressure control, reduce manual labor, and improve overall productivity.
To choose the right pump, consider key factors such as pressure and flow requirements, motor power, reservoir capacity, and control features. Reviewing technical specifications and consulting with our experts can help determine the best option for your application.
Yes, many models are designed for outdoor and heavy-duty applications, featuring weather-resistant enclosures and durable materials. However, for extreme conditions, additional protective measures may be required.
Regular maintenance includes checking hydraulic fluid levels, inspecting seals and hoses for leaks, cleaning filters, and monitoring motor performance. Proper maintenance ensures long-term reliability and efficiency.
Key safety features include pressure relief valves, overheat protection, emergency shut-off switches, and durable housing to prevent system failures and enhance operational safety.
