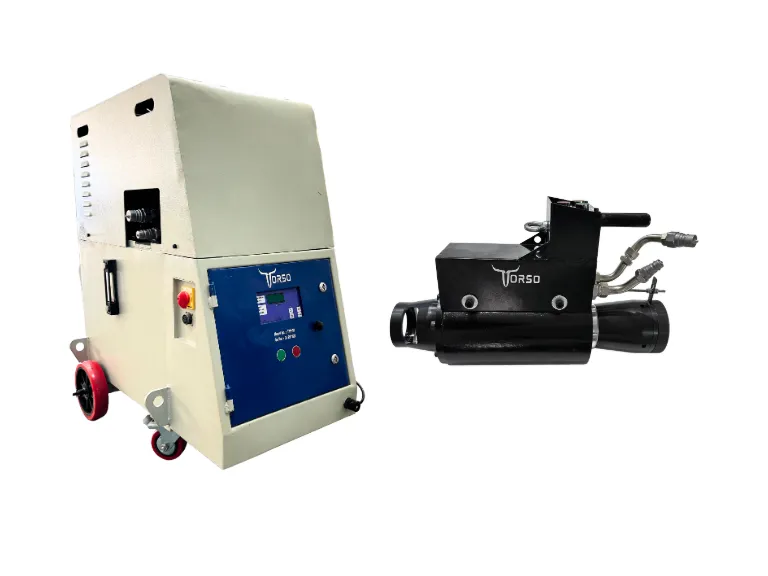

Customers can choose between electric or pneumatic power for the hydraulic power pack. A fully pneumatic tube pulling system is available, featuring a power pack and tube pulling gun. A single power pack supports all pulling gun types, available in various sizes and capacities. The power pack also offers an optional air cooler to prevent overheating, ensuring uninterrupted operation in high-heat environments. With high speed and power, Torso’s Continuous Tube Pulling System is ideal for retubing operations, requiring minimal maintenance and manpower.
Bring to the table win-win survival strategies to ensure proactive domination. At the end of the day, going forward, a new normal that has evolved from generation X is on the runway heading towards.
Hydraulic and Pneumatic Power Pack | ||
Specifications | Hydraulic | Pneumatic |
Model | TTP-50 | TTP-50 |
Oil Tank Capacity (ltrs) | 90 | 90 |
Oil | VG 68 | VG 68 |
Drive | Electric | – |
Voltage | 380 / 440 | – |
Power in hp (kw) | 5 (3.7) | 5.25 (3.5) |
Air Consumption (cfm) | – | 180 at 7 Bar |
Control Voltage | 24 | – |
Hydraulic Hoses | 1/2” x 5 mtrs & 3/4” x 5 mtrs | 1/2” x 5 mtrs & 3/4” x 5 mtrs |
Net Weight (kg/lbs) | 230 (506) | 230 (506) |
Hydraulic Tube Pulling Gun | |||
Specifications | TSHPG-15 | TSHPG-30 | TSHPG-45 |
Pulling Capacity (ton) | 15 | 30 | 45 |
Max Tube O.D. thru Gun (inch) | 1 | 1.1/2 | 3 |
Stub Pulling Capacity (inch) | 1.1/2 | 3 | 4 |
Weight kg (lbs) | 18 (40) | 25 (55) | 51 (112) |
Free Pulling Speed (m/min) with TTPP-300 | 3.3 | 2 | 1.3 |
The Continuous Tube Pulling System enables fast and efficient tube removal in heat exchangers, condensers, and boilers. Powered by hydraulic or pneumatic sources, it delivers high pulling force for smooth tube extraction without damaging tube sheets. Versatile pulling guns accommodate various tube sizes and materials, ensuring adaptability across industries. An air-cooled power pack prevents overheating, maintaining performance in high-temperature conditions. Its low-maintenance design minimizes operational costs and extends service life. The system also requires minimal manpower, enhancing productivity and efficiency. Fast, safe, and reliable, it makes retubing operations effortless
Hydraulic and Pneumatic Power Pack | ||
Specifications | Hydraulic | Pneumatic |
Model | TTP-50 | TTP-50 |
Oil Tank Capacity (ltrs) | 90 | 90 |
Oil | VG 68 | VG 68 |
Drive | Electric | – |
Voltage | 380 / 440 | – |
Power in hp (kw) | 5 (3.7) | 5.25 (3.5) |
Air Consumption (cfm) | – | 180 at 7 Bar |
Control Voltage | 24 | – |
Hydraulic Hoses | 1/2” x 5 mtrs & 3/4” x 5 mtrs | 1/2” x 5 mtrs & 3/4” x 5 mtrs |
Net Weight (kg/lbs) | 230 (506) | 230 (506) |
Hydraulic Tube Pulling Gun | |||
Specifications | TSHPG-15 | TSHPG-30 | TSHPG-45 |
Pulling Capacity (ton) | 15 | 30 | 45 |
Max Tube O.D. thru Gun (inch) | 1 | 1.1/2 | 3 |
Stub Pulling Capacity (inch) | 1.1/2 | 3 | 4 |
Weight kg (lbs) | 18 (40) | 25 (55) | 51 (112) |
Free Pulling Speed (m/min) with TTPP-300 | 3.3 | 2 | 1.3 |
The Continuous Tube Pulling System enables fast and efficient tube removal in heat exchangers, condensers, and boilers. Powered by hydraulic or pneumatic sources, it delivers high pulling force for smooth tube extraction without damaging tube sheets. Versatile pulling guns accommodate various tube sizes and materials, ensuring adaptability across industries. An air-cooled power pack prevents overheating, maintaining performance in high-temperature conditions. Its low-maintenance design minimizes operational costs and extends service life. The system also requires minimal manpower, enhancing productivity and efficiency. Fast, safe, and reliable, it makes retubing operations effortless
The system operates on electric or pneumatic power, allowing flexibility based on application needs.
Yes, one power pack is compatible with all pulling gun types, making it a versatile and cost-effective solution.
The air-cooled power pack keeps the oil cool, ensuring uninterrupted performance in high-temperature environments.
Interchangeable tube pulling guns with same powerpack. 15 ton gun High-speed, light-duty applications, 30 ton gun Heavy-duty tube pulling and 45 ton gun Handles tubes up to 4” O.D.
It offers high-speed tube removal, minimal maintenance, continuous performance, and requires only one operator, making retubing faster, safer, and more efficient.
