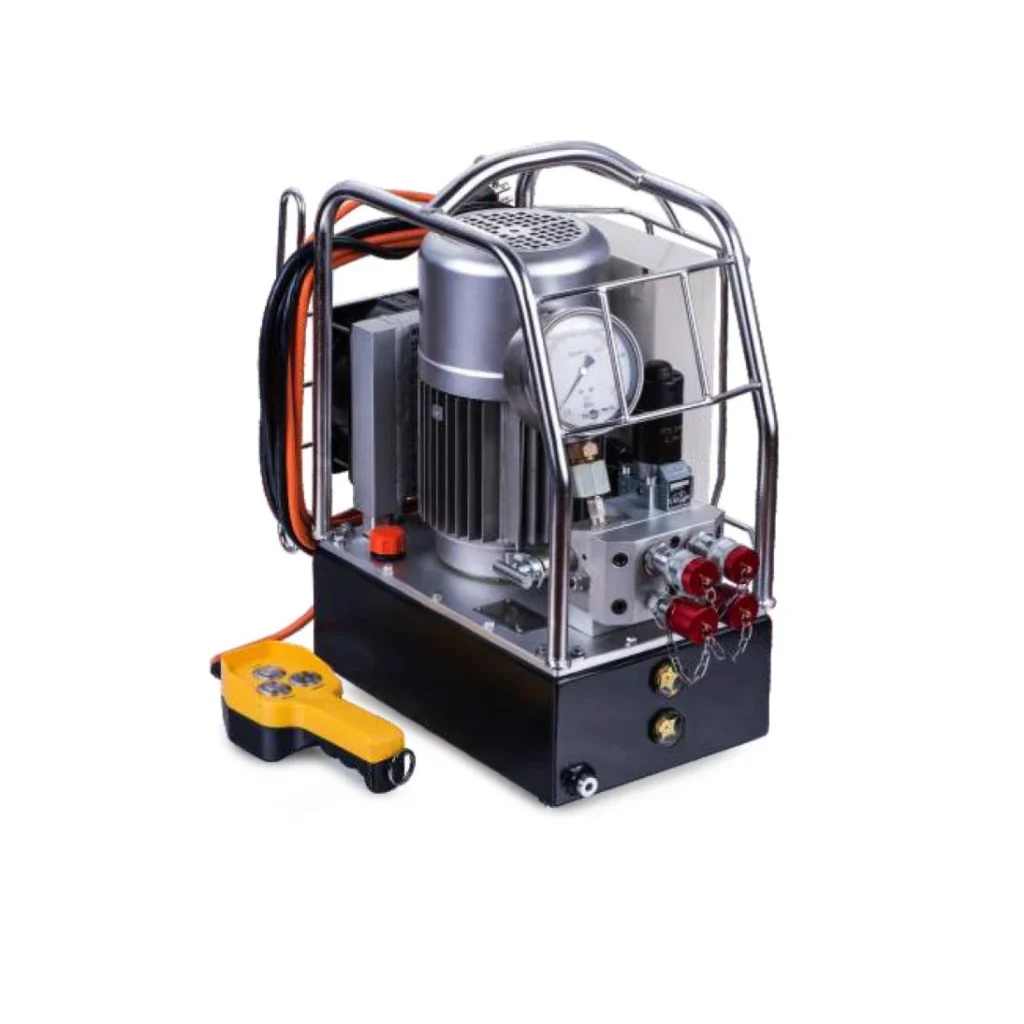

Ultra High Pressure Electric Pump | |||||||||
Model No. | Reservoir (L) | Motor (kw) | Supply | Max. Working Pressure | Size (mm) | Control Line (m) | Output Flow (L/min) | Weight (kg) | Mode of Action |
BEL-8 | 7.6 | 1.1 | 220 V / 50 Hz / Single Phase | 2000 bar / 29000 psi | 375 x 300 x 410 | 6 | 2@50 bar/ 725 psi 0.3@2000 bar/ 29000 psi | 20 | Single Acting |
BEL-8D | Double Acting | ||||||||
Key Features:
Ultra High Pressure Electric Pump | |||||||||
Model No. | Reservoir (L) | Motor (kw) | Supply | Max. Working Pressure | Size (mm) | Control Line (m) | Output Flow (L/min) | Weight (kg) | Mode of Action |
BEL-8 | 7.6 | 1.1 | 220 V / 50 Hz / Single Phase | 2000 bar / 29000 psi | 375 x 300 x 410 | 6 | 2@50 bar/ 725 psi 0.3@2000 bar/ 29000 psi | 20 | Single Acting |
BEL-8D | Double Acting | ||||||||
Key Features:
When selecting a pump, consider factors such as the required pressure range, flow rate, compatibility with your bolt tensioners, and environmental conditions. Our team can assist you in choosing the best model based on your specific needs.
Regular maintenance includes checking hydraulic fluid levels, inspecting hoses and connections for leaks, and ensuring that control settings function properly. Following the manufacturer’s guidelines will help maximize performance and longevity.
