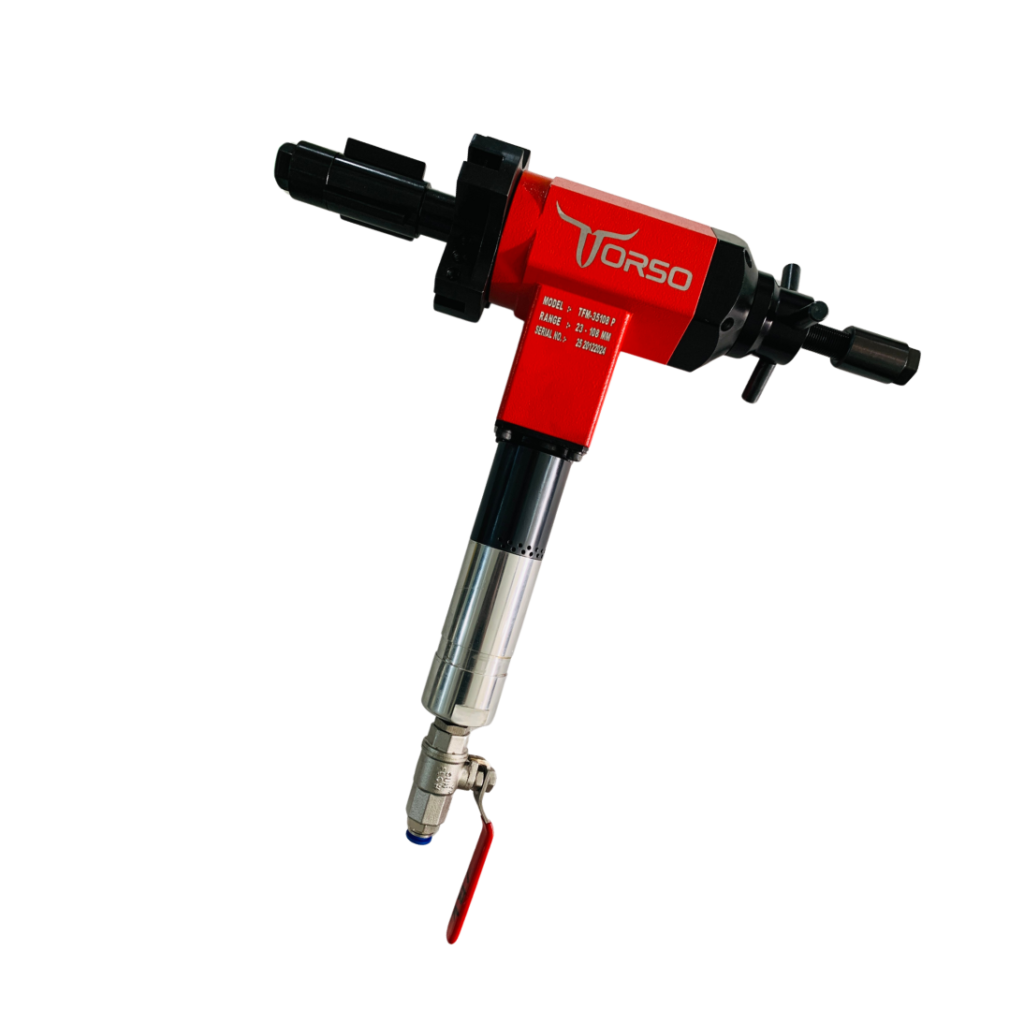

The TFM-35108 is a heavy-duty machine designed for beveling, facing, and weld edge preparation. Its modular, ergonomic design ensures operator comfort and efficiency, while delivering precision and reliability in demanding applications. Built to withstand tough conditions, it is ideal for maintenance, repair, and fabrication, providing high-quality results every time.
Tube / Pipe Bevelling Machines | ||
TFM-35108 | ||
Drive | Pneumatic | Electric |
Locking Range (mm) | 39 – 104 | 39 – 104 |
Ideal Speed (RPM) | 70 | 70 |
Torque (Nm) | 220 | 240 |
Feeding Stroke (mm) | 40 | 40 |
Pneumatic Power (HP) | 1.3 | – |
Air Consumption (cfm) | 40 | – |
Air Pressure (psi) | 90 | – |
Electric Power (watts) | – | 1400 |
Net Weight (kg) | 15 | 15 |
Gross Weight (kg) | 25 | 25 |
Box Dimension (l x w x h) | 23″ x 17″ x 7″ | 23″ x 17″ x 7″ |
Key Features:
Tube / Pipe Bevelling Machines | ||
TFM-35108 | ||
Drive | Pneumatic | Electric |
Locking Range (mm) | 39 – 104 | 39 – 104 |
Ideal Speed (RPM) | 70 | 70 |
Torque (Nm) | 220 | 240 |
Feeding Stroke (mm) | 40 | 40 |
Pneumatic Power (HP) | 1.3 | – |
Air Consumption (cfm) | 40 | – |
Air Pressure (psi) | 90 | – |
Electric Power (watts) | – | 1400 |
Net Weight (kg) | 15 | 15 |
Gross Weight (kg) | 25 | 25 |
Box Dimension (l x w x h) | 23″ x 17″ x 7″ | 23″ x 17″ x 7″ |
Key Features:
The TFM-35108 is engineered for versatility, capable of working with carbon steel, stainless steel, and heavy-wall pipes. Designed for precision, it delivers exceptional results in beveling, facing, and weld preparation across various industrial applications.
Yes, the TFM-35108 is available in both electric and pneumatic versions, allowing users to select the optimal power source based on their operational needs and work environment.
This machine is widely utilized in boiler repair, maintenance, fabrication, and heavy-duty industrial applications requiring high-precision beveling and weld preparation. Industries such as power generation, oil and gas, shipbuilding, and pipeline construction rely on its performance for critical operations.
The TFM-35108 is designed to execute external, internal, and facing operations simultaneously, enhancing efficiency and ensuring precise, consistent results in high-volume tasks.
With its superior power-to-weight ratio, modular ergonomic design, and durability in tough industrial conditions, the TFM-35108 sets itself apart. It delivers precision, reliability, and high performance, making it the preferred choice for demanding weld preparation tasks.
