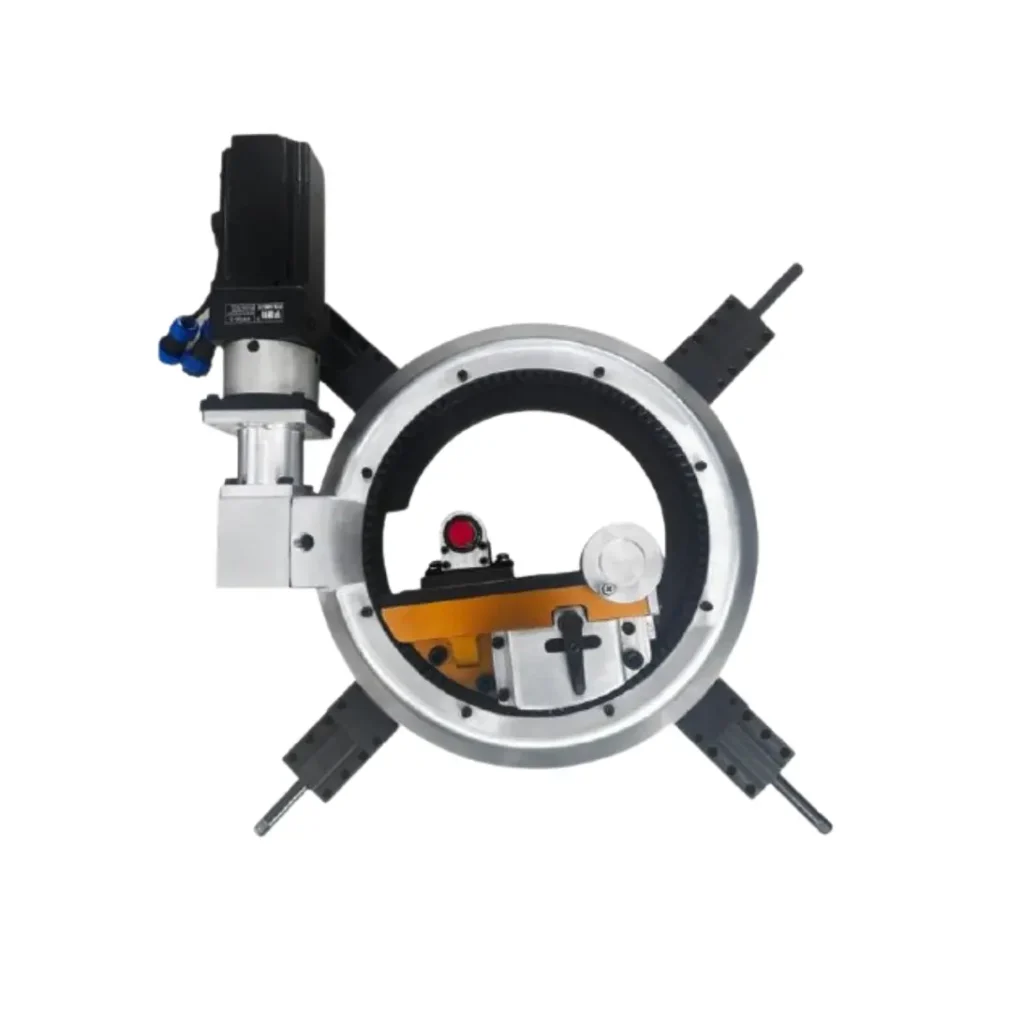

OD Mounted Flange Facing

An OD Mounted Flange Facing Machine is used to machine and resurface flange sealing surfaces, ensuring a proper seal for reliable operation. It is portable, precise, and versatile, allowing on-site maintenance without removing flanges. These machines are essential for refurbishing damaged or worn flanges, reducing downtime and repair costs. They are commonly used in industries like oil & gas, petrochemical, and power generation to improve flange integrity and equipment longevity.
Request a Quote

Product Inquiry

Interested in OD Mounted Flange Facing Get in touch!
Our History
OD Mounted Flange Facing

Model
Drive
Clamping Range (O.D.)
Working Range
Tool Travel
Rotation Speed
Air Pressure
Air Consumption
Voltage
Frequency
Power Supply
TTOD-12
Pneumatic
50 mm –
300 mm
0 mm – 300 mm
50 mm
0 – 28 rpm
0.8 – 1.0 Mpa
2000 L/min
–
–
–
Servo Motor Electric
–
–
1 PH 220 V
50 Hz
1000 – 3000 W
TTOD-24
Pneumatic
150 mm –
610 mm
0 mm – 610 mm
95 mm
0 – 24 rpm
0.8 – 1.0 Mpa
2000 L/min
–
–
–
Servo Motor Electric
–
–
1 PH 220 V
50 Hz
1000 – 3000 W
TTOD-40
Pneumatic
500 mm –
1000 mm
0 mm – 1000 mm
95 mm
0 – 20 rpm
0.8 – 1.0 Mpa
2000 L/min
–
–
–
Servo Motor Electric
–
–
1 PH 220 V
50 Hz
1000 – 3000 W
TTOD-60
Pneumatic
1000 mm – 1500 mm
0 mm – 1500 mm
95 mm
0 – 15 rpm
0.8 – 1.0 Mpa
2000 L/min
–
–
–
Servo Motor Electric
–
–
1 PH 220 V
50 Hz
1000 – 3000 W
TTOD-80
Pneumatic
1500 mm – 2000 mm
0 mm – 2000 mm
95 mm
0 – 12 rpm
0.8 – 1.0 Mpa
2000 L/min
–
–
–
Servo Motor Electric
–
–
1 PH 220 V
50 Hz
1000 – 3000 W
TTOD-100
Pneumatic
2000 mm – 2500 mm
0 mm – 2500 mm
95 mm
0 – 10 rpm
0.8 – 1.0 Mpa
2000 L/min
–
–
–
Servo Motor Electric
–
–
1 PH 220 V
50 Hz
1000 – 3000 W
TTOD-120
Pneumatic
2500 mm – 3000 mm
0 mm – 3000 mm
95 mm
0 – 8 rpm
0.8 – 1.0 Mpa
2000 L/min
–
–
–
Servo Motor Electric
–
–
1 PH 220 V
50 Hz
1000 – 3000 W
Journey Was Started

Torso OD-mounted flange facers offer a versatile and efficient solution for refacing, milling, beveling, squaring, counterboring, and preparing end configurations for welding. Designed for portability and precision, these tools accommodate diameters ranging from 0 to 120 inches (0 to 3000 mm). Built with rugged durability and innovative engineering, they support OD mounting and adapt to various machining requirements. The modular design allows for easy setup using detachable mounts or chucks, ensuring optimal performance for both facing and milling tasks.

Key Features:

  • Compact OD Mounting System provides stability and precision while minimizing setup time.
  • Customizable Tooling Options support a wide array of cutting tools for specific applications.
  • High-Torque Operation ensures efficient cutting performance even on tough materials.
  • Minimal Downtime Design is engineered for quick adjustments and maintenance on-site.
  • Precision Control Mechanisms offer accurate depth and alignment adjustments for superior results.
Download Brochures
OD Mounted Flange Facing

Model
Drive
Clamping Range (O.D.)
Working Range
Tool Travel
Rotation Speed
Air Pressure
Air Consumption
Voltage
Frequency
Power Supply
TTOD-12
Pneumatic
50 mm –
300 mm
0 mm – 300 mm
50 mm
0 – 28 rpm
0.8 – 1.0 Mpa
2000 L/min
–
–
–
Servo Motor Electric
–
–
1 PH 220 V
50 Hz
1000 – 3000 W
TTOD-24
Pneumatic
150 mm –
610 mm
0 mm – 610 mm
95 mm
0 – 24 rpm
0.8 – 1.0 Mpa
2000 L/min
–
–
–
Servo Motor Electric
–
–
1 PH 220 V
50 Hz
1000 – 3000 W
TTOD-40
Pneumatic
500 mm –
1000 mm
0 mm – 1000 mm
95 mm
0 – 20 rpm
0.8 – 1.0 Mpa
2000 L/min
–
–
–
Servo Motor Electric
–
–
1 PH 220 V
50 Hz
1000 – 3000 W
TTOD-60
Pneumatic
1000 mm – 1500 mm
0 mm – 1500 mm
95 mm
0 – 15 rpm
0.8 – 1.0 Mpa
2000 L/min
–
–
–
Servo Motor Electric
–
–
1 PH 220 V
50 Hz
1000 – 3000 W
TTOD-80
Pneumatic
1500 mm – 2000 mm
0 mm – 2000 mm
95 mm
0 – 12 rpm
0.8 – 1.0 Mpa
2000 L/min
–
–
–
Servo Motor Electric
–
–
1 PH 220 V
50 Hz
1000 – 3000 W
TTOD-100
Pneumatic
2000 mm – 2500 mm
0 mm – 2500 mm
95 mm
0 – 10 rpm
0.8 – 1.0 Mpa
2000 L/min
–
–
–
Servo Motor Electric
–
–
1 PH 220 V
50 Hz
1000 – 3000 W
TTOD-120
Pneumatic
2500 mm – 3000 mm
0 mm – 3000 mm
95 mm
0 – 8 rpm
0.8 – 1.0 Mpa
2000 L/min
–
–
–
Servo Motor Electric
–
–
1 PH 220 V
50 Hz
1000 – 3000 W
Journey Was Started

Torso OD-mounted flange facers offer a versatile and efficient solution for refacing, milling, beveling, squaring, counterboring, and preparing end configurations for welding. Designed for portability and precision, these tools accommodate diameters ranging from 0 to 120 inches (0 to 3000 mm). Built with rugged durability and innovative engineering, they support OD mounting and adapt to various machining requirements. The modular design allows for easy setup using detachable mounts or chucks, ensuring optimal performance for both facing and milling tasks.

Key Features:

  • Compact OD Mounting System provides stability and precision while minimizing setup time.
  • Customizable Tooling Options support a wide array of cutting tools for specific applications.
  • High-Torque Operation ensures efficient cutting performance even on tough materials.
  • Minimal Downtime Design is engineered for quick adjustments and maintenance on-site.
  • Precision Control Mechanisms offer accurate depth and alignment adjustments for superior results.
Download Brochures

Questions? You’re covered

01. What is an OD Mounted Flange Facing Machine, and how does it work?
An OD Mounted Flange Facing Machine is a portable, high-precision tool used to resurface flange sealing surfaces, ensuring a smooth and accurate finish. It mounts externally on the flange’s outside diameter (OD), providing superior stability for precise machining. These machines restore worn or damaged flanges, reduce maintenance costs, and minimize downtime, making them essential for industries that require reliable flange integrity.
Industries such as oil and gas, petrochemical, power generation, shipbuilding, and manufacturing rely on OD-mounted flange facers for maintaining and repairing critical piping and pressure vessel components. These machines enhance flange integrity, prevent costly leaks, and extend equipment lifespan. Their ability to perform on-site machining increases efficiency and reduces operational disruptions.
Torso OD-mounted flange facers handle flange diameters ranging from 0 to 120 inches (0 to 3000 mm). Their modular design allows for easy adjustments, making them adaptable to various machining requirements in small- and large-scale applications.
OD mounting provides greater stability, enhanced precision, and reduced vibration during machining. It allows faster setup, efficient on-site maintenance, and eliminates the need for flange removal, improving surface finish quality and minimizing downtime.
Selecting the right tooling depends on flange material, size, and machining requirements. Torso OD-mounted flange facers offer customizable options, including beveling, milling, and counterboring. Consulting a specialist ensures optimal performance and precise results.
