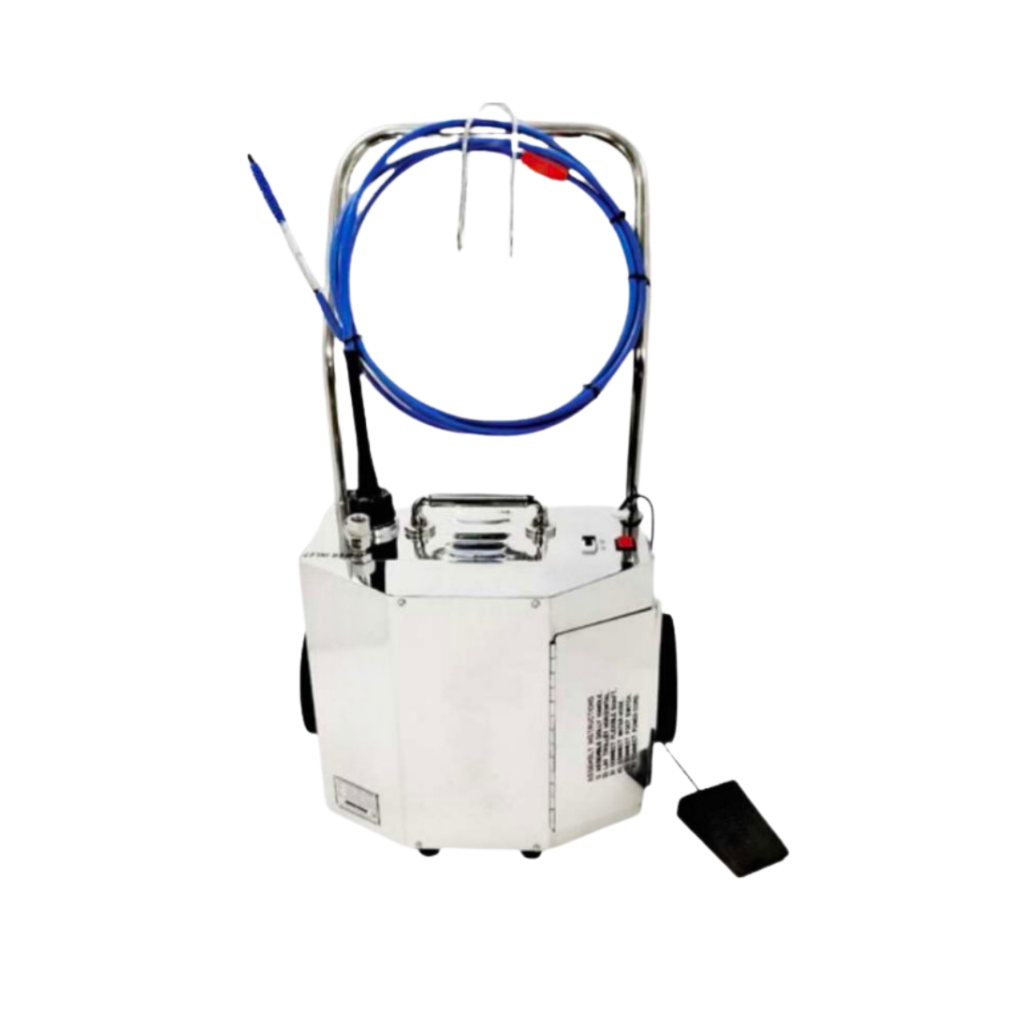

Our Electric Tube Cleaner is a compact, efficient, and environmentally friendly solution for cleaning straight and curved tubes in heat exchangers, condensers, boilers, and other tubular equipment. Designed for maximum versatility, it features interchangeable shafts and accessories to handle various cleaning requirements with ease.
Electric Tube Cleaner | |||||||
Tube O.D. | Model No. | Motor Power | Motor Speed | Weight kg | Voltage/ Frequency | ||
inch | mm | HP | KW | RPM | |||
1/4 – 1 | 6.35 – 25.40 | TTC 40 | 1/2 | 0.4 | 890 | 28 | 110v 50 Hz /60 Hz 220v 50 Hz /60 Hz |
1/4 – 1 | 6.35 – 25.40 | TTC 60 | 3/4 | 0.6 | 890 | 30 | |
1 – 1.1/2 | 25.40 – 38.10 | TTC 75 | 1 | 0.75 | 1780 | 32 | |
1 – 1.1/2 | 25.40 – 38.10 | TTC 150 | 2 | 1.5 | 1780 | 38 | |
1/4 – 1 | 6.35 – 25.40 | PORTO | 1/2 | 0.4 | 1780 | 16 | |
The system operates by attaching a cleaning tool to a flexible shaft, which rotates inside the tube to remove deposits. For enhanced efficiency, water flows through the shaft, flushing out debris while minimizing consumption. Its stainless steel body ensures durability in the toughest conditions, while large wheels provide effortless mobility. A foot switch allows for hands-free operation, enhancing precision and ease of use.
| Company | Contact | Country |
|---|---|---|
| Alfreds Futterkiste | Maria Anders | Germany |
| Centro comercial Moctezuma | Francisco Chang | Mexico |
| Ernst Handel | Roland Mendel | Austria |
| Island Trading | Helen Bennett | UK |
| Laughing Bacchus Winecellars | Yoshi Tannamuri | Canada |
| Magazzini Alimentari Riuniti | Giovanni Rovelli | Italy |
Electric Tube Cleaner | |||||||
Tube O.D. | Model No. | Motor Power | Motor Speed | Weight kg | Voltage/ Frequency | ||
inch | mm | HP | KW | RPM | |||
1/4 – 1 | 6.35 – 25.40 | TTC 40 | 1/2 | 0.4 | 890 | 28 | 110v 50 Hz /60 Hz 220v 50 Hz /60 Hz |
1/4 – 1 | 6.35 – 25.40 | TTC 60 | 3/4 | 0.6 | 890 | 30 | |
1 – 1.1/2 | 25.40 – 38.10 | TTC 75 | 1 | 0.75 | 1780 | 32 | |
1 – 1.1/2 | 25.40 – 38.10 | TTC 150 | 2 | 1.5 | 1780 | 38 | |
1/4 – 1 | 6.35 – 25.40 | PORTO | 1/2 | 0.4 | 1780 | 16 | |
The system operates by attaching a cleaning tool to a flexible shaft, which rotates inside the tube to remove deposits. For enhanced efficiency, water flows through the shaft, flushing out debris while minimizing consumption. Its stainless steel body ensures durability in the toughest conditions, while large wheels provide effortless mobility. A foot switch allows for hands-free operation, enhancing precision and ease of use.
| Company | Contact | Country |
|---|---|---|
| Alfreds Futterkiste | Maria Anders | Germany |
| Centro comercial Moctezuma | Francisco Chang | Mexico |
| Ernst Handel | Roland Mendel | Austria |
| Island Trading | Helen Bennett | UK |
| Laughing Bacchus Winecellars | Yoshi Tannamuri | Canada |
| Magazzini Alimentari Riuniti | Giovanni Rovelli | Italy |
The machine effectively removes scale, rust, and other deposits from tubes in heat exchangers, condensers, boilers, and similar equipment.
Our Electric Tube Cleaner supports various cleaning tools, including brushes, drill heads, buffing tools, and carbide cutters, depending on the deposit type. Flexible shafts are interchangeable for different tube sizes and applications.
Regular inspection and cleaning of the flexible shaft, foot switch, and water flow system help ensure long-term performance. Lubrication of moving parts is recommended as per the user manual.
The Electric Tube Cleaner is available in multiple voltage options to suit different industrial requirements, including 110V and 220V.
No extensive training is needed. The user-friendly design and foot switch control make it easy to operate. However, following the instruction manual and safety guidelines ensures optimal performance and safety.
